Laser Scan Head Laser Machine Parts 10mm Input Aperture For Precision Marking

Brand Name : OY

Model Number : 1064nm

Certification : ISO9001:2008

Place of Origin : Shenzhen

MOQ : 1

Price : negotiation

Supply Ability : 20000units

Packaging Details : carton

Product name : 1064nm Scanning

Laser type : 1064nm

Application : fiber laser marking machine

Frequency : ≤1000Hz

Warranty : 3 months

certification : ISO9001:2008

Contact Now

1064nm Fiber Laser Scanning Head for Fiber Laser Marker Equipements

^{^{Product Application:}}

^{Designed with digital or analog interface, suitable for different fiber laser source.
The input aperture is 10mm, 12mm and 16mm.
It is widely used in different industrial applications including precision laser marking and laser engraving.}

Laser Scan Head Laser Machine Parts 10mm Input Aperture For Precision Marking

^{Technical Parameters:}

^{1064nm Galvo Scanner/Galvanometer Scanner/ Scan Head for Fiber Laser Marking Machine}
^Model	^E10	^E12	^E16
^{Aperture Size}	^10mm	^12mm	^16mm
^{Typical Scan Angle}	^±20°	^±20°	^±20°
^{Power Requirement}	^±15VDC	^±15VDC	^±15VDC
^{1% Full Scale}	^0.36ms	^0.4ms	^0.48ms
^{Marking Speed}	^3.5m/s	^3m/s	^2.5m/s
^{Positioning Speed}	^7m/s	^6.5m/s	^5.5m/s
^{Writing Speed}	^650cps	^600cps	^500cps
^{Repeatability}	^10μrad	^10μrad	^10μrad
^{Gain Drift}	^<80ppm/K	^<80ppm/K	^<80ppm/K
^{Offset Drift}	^<50μrad/K	^<50μrad/K	^<50μrad/K
^{Long-term Drift}	^0.3mrad	^0.3mrad	^0.3mrad
^{Operating Temperature}	^25℃±10℃	^25℃±10℃	^25℃±10℃
^{Digital Communication}	^XY2-100	^XY2-100	^XY2-100
^{Mirror Coatings}	^{YAG/CO2/Silver}	^{YAG/CO2/Silver}	^{YAG/CO2/Silver}
^Weight	^1.38kgs	^1.52kgs	^2.35kgs

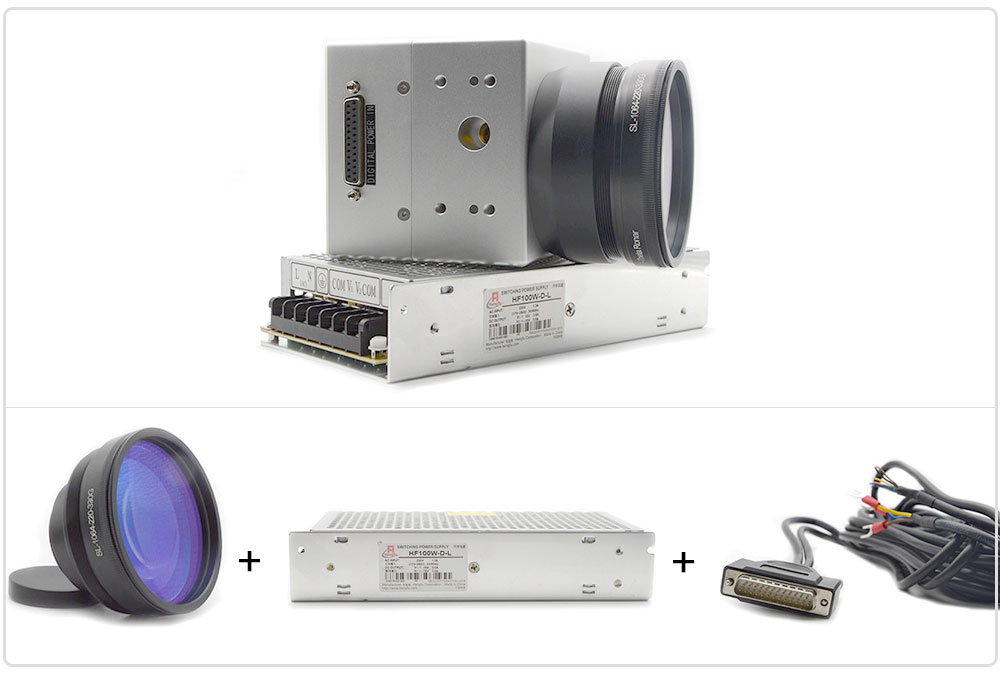

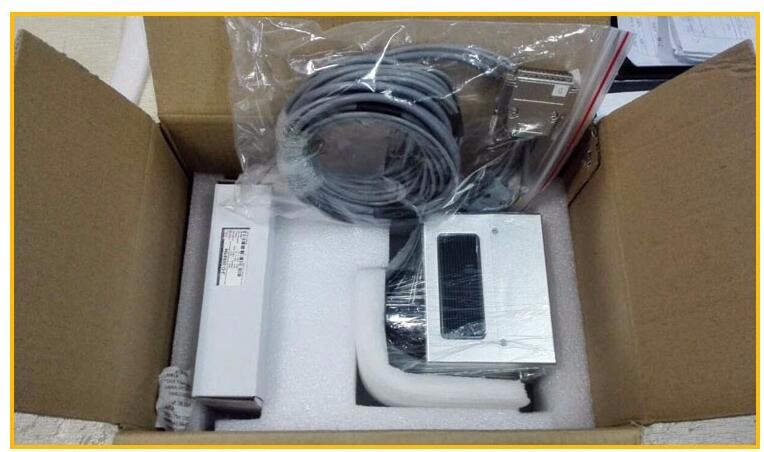

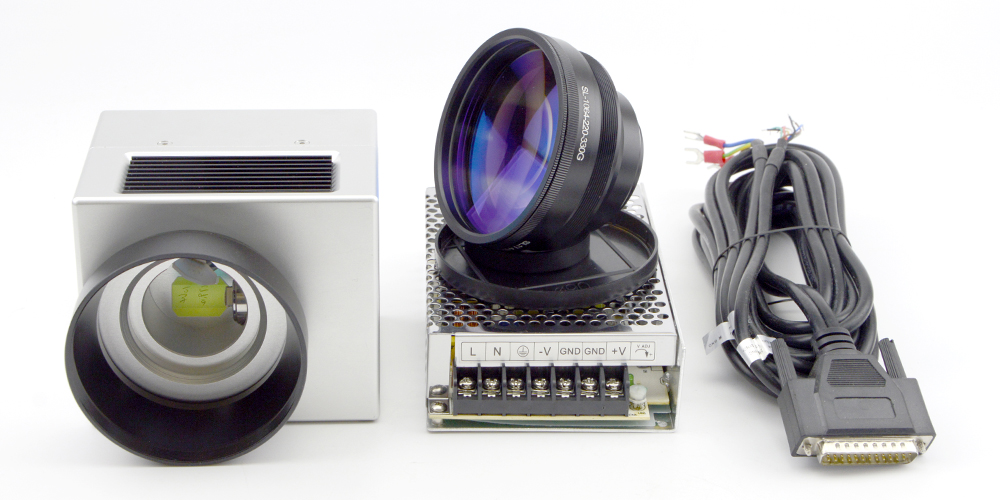

^{Detail Pictures:}

Laser Scan Head Laser Machine Parts 10mm Input Aperture For Precision Marking
