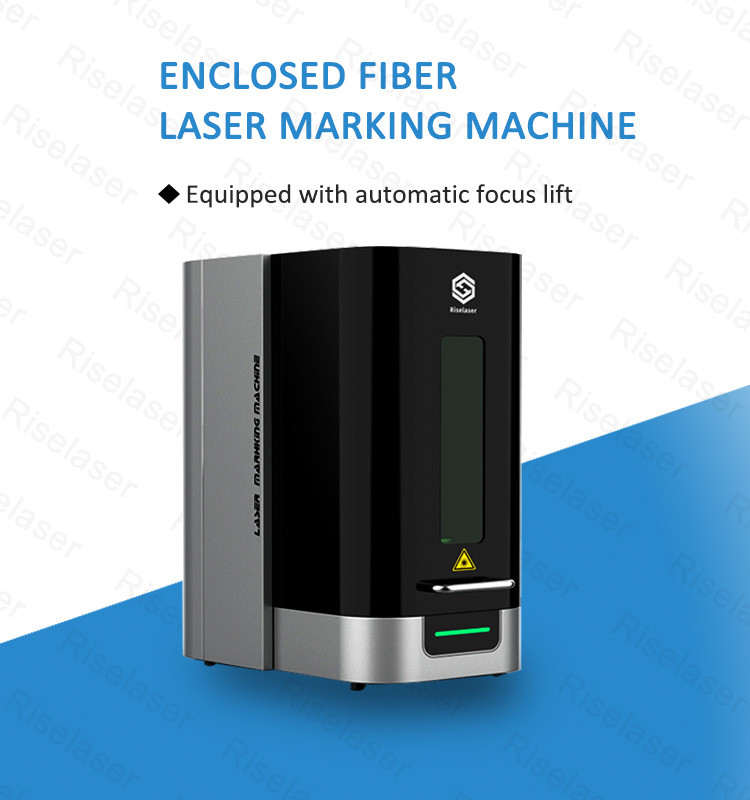

Energy Box laser marking machines for Jewelry for ring
Machine specifiction
| Fiber Laser Source | Model Name | Energy Box |
| Laser Wavelength | 1064nm |
| Average Output Power | 20W |
| Modulation Frequency Range | 90 ±10 @27KHZ |
| Power adjust range | 30~100% |
| Scanner Head | Maximum Speed | ≤5000mm/s |
| Resolution | 0.01mm |
| Long-term Power Instability | 5% |
| Marking Software | EZCAD Control Card + Software |
| System Properties | External Red Beam | Included |
| Marking Range | 100*100mm |
| Minimal character | 0.01mm |
| Minimum Character Height | 0.15mm |
| Cooling ways | Force-air Cooling |
| Power supply | AC110/220V, 50HZ |
| Working Temperature | 0-40℃ |
| Machine Dimension | 48*31.5*58mm |
| Machine Weight | 50 KG |
| Packing Dimension | 48*31.5*58mm |
| Packing Weight | 70 KG |

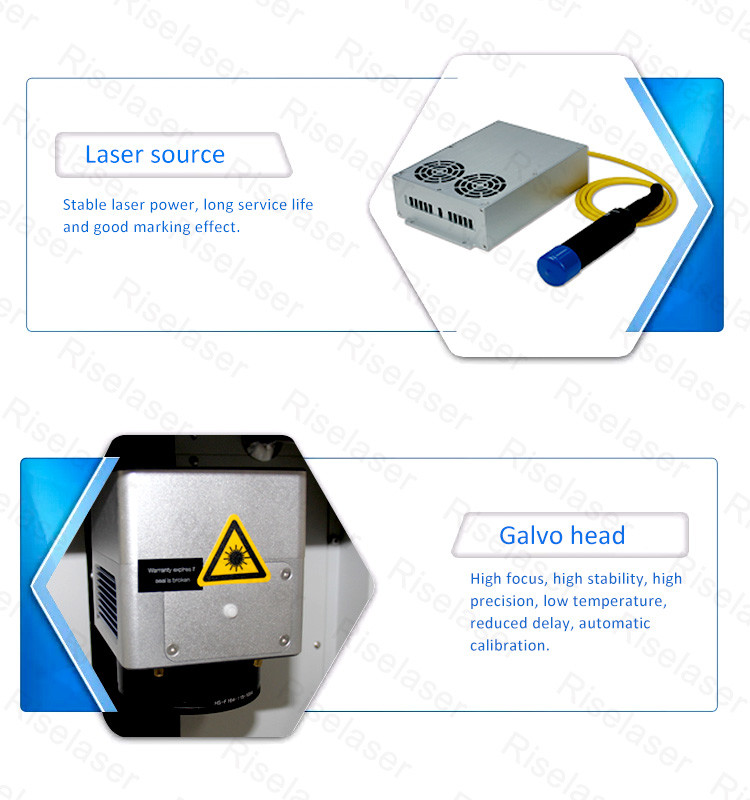

Laser source
Raycus/MAX/IPG/JPT, multiple choices. Different brands, different laser powers are available. The higher the power, the faster the marking speed.
Galvo Lens/Scan Head
There are two high-speed motor-controlled reflective lenses inside the head, and the maximum speed of the machine is 7000mm/s
Marking speed.
Different brands and modes are available, autofocus type and 3D type can also be made.
Field lens
110*110mm, 175*175mm, 200*200mm (standard), 3000*300mm, different lenses. The same laser power with smaller lens will have faster marking speed.
Other sizes are also available.

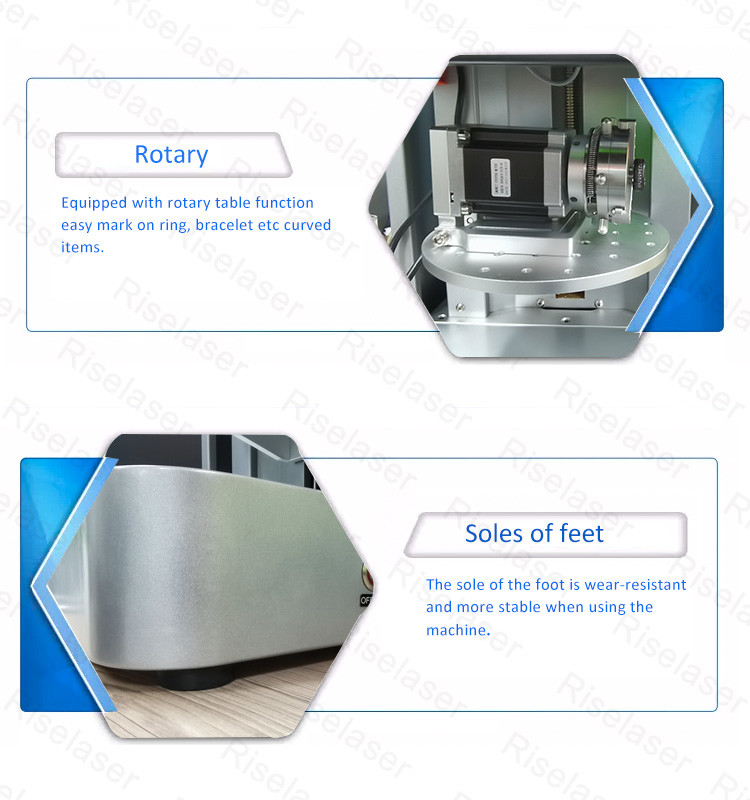

Rotate
Different diameters of rotation are available in 70mm and other sizes to meet customer needs.
There are special circular inner and outer marking turntables. Special rotation of the pen or light bulb. We can also customize other types of rotations for customers.
Control panel
Emergency stop: protect the operator to the greatest extent.
Split power switch for laser source.
Split power switch for the scan head.
Humanized control system, simple operation, safe and convenient, dust-proof design.

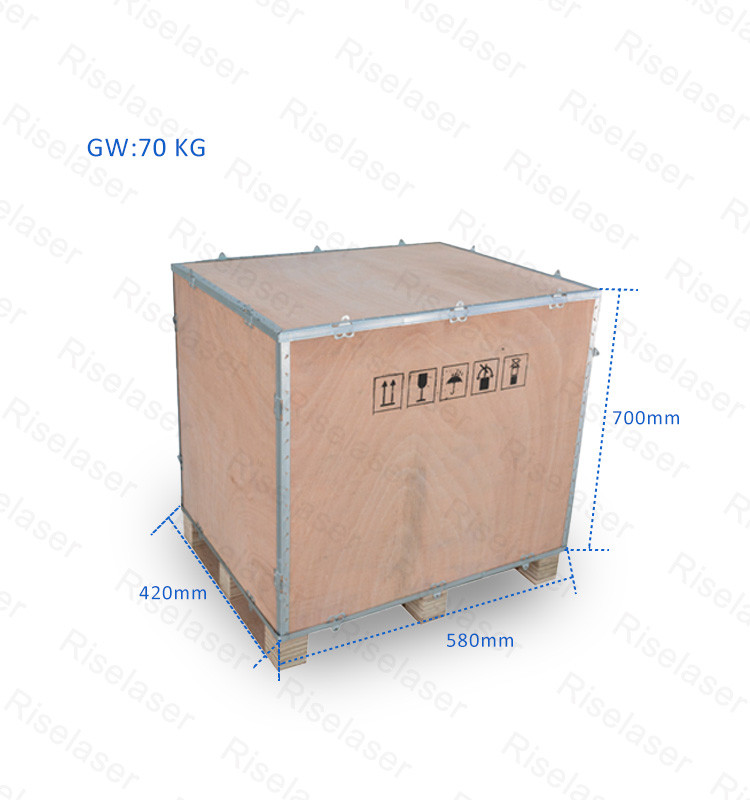

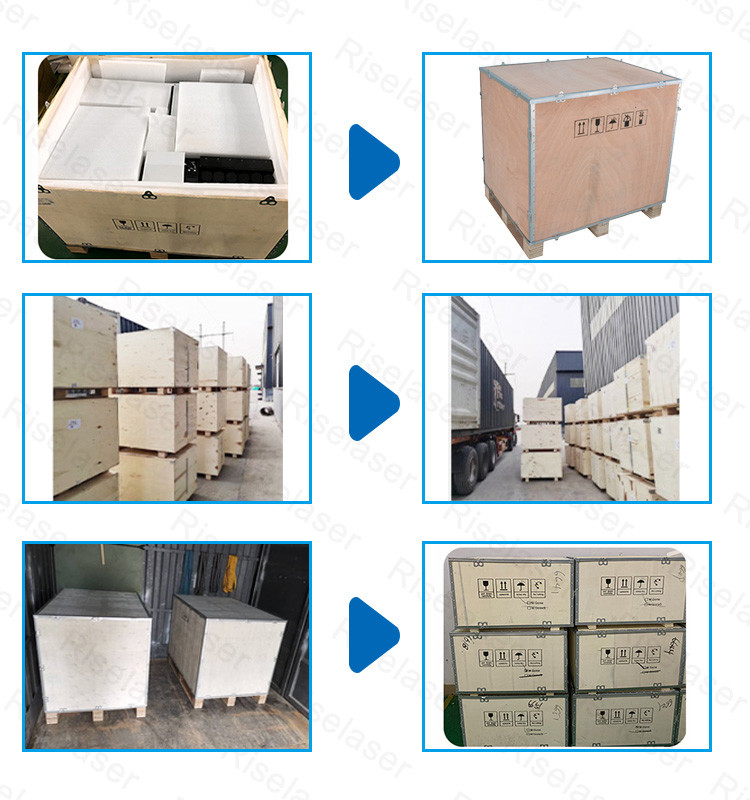

Package
